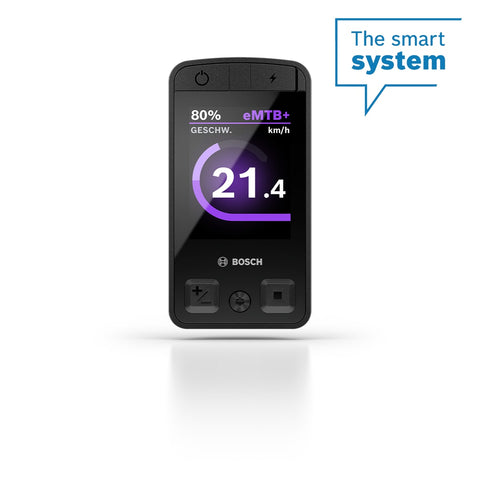

Kiox 400C (BRC3200)  Operating Unit for Bosch E-BIKE ELECTRIC BIKES
Important product information

The external charging function is not possible in the following cases:

  • On all models of the drive unit BDU37YY
  • When the drive unit BDU31YY has the Multi-Purpose Port (MPP) configured either as an HPP (High power Port) or as a light port and a light with a power of more than 6 watts is active *
  • For drive units BDU38YY, BDU34YY, and BDU33YY, if the high power port (HPP), ow power port (LPP), and light ports with more than 6 watts are all active at the same time *

* If USB charging is disabled for any of the reasons above, you’ll need to restart the eBike to reactivate the charging function.



  •  Description

    Kiox 400C is the perfect display for the trail. Inconspicuously integrated in the frame and also full of functions.

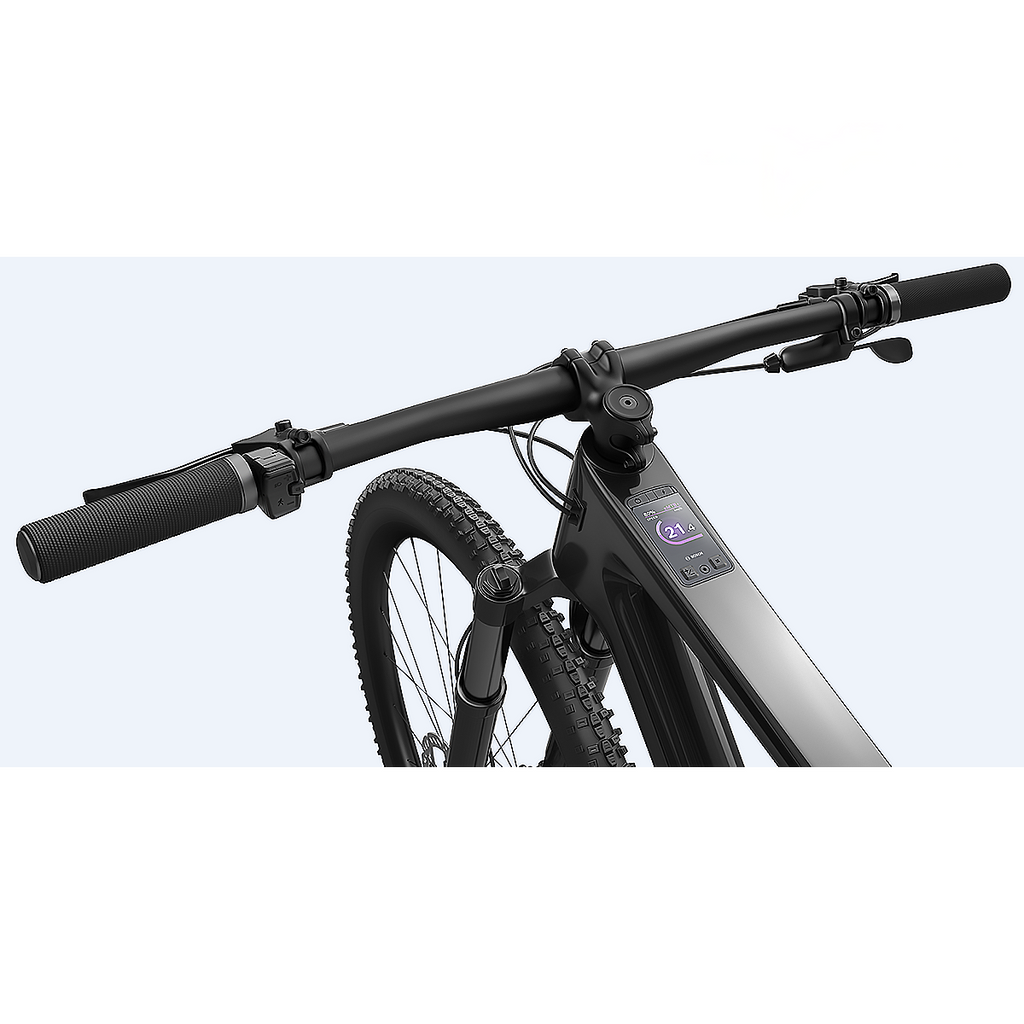

    It is securely installed in the top tube and therefore ideally protected from bumps and knocks, even on fast downhill rides.

    • Size colour screen: Diagonal approx. 2,0" / 5,1 cm
    • Max. typical brightness: 1000 cd/m2 with brightness control
    • Power supply: eBike battery/integrated battery
    • Charging station for external devices via. USB-C® (Charging cable not included)
    • Dynamic screen layout without manual screen switching
    • Notification tones for navigation
    • Display configuration with 30 customisation options via the eBike Flow app
    • Expandable with Mini Remote for more convenient operation
    Scope of delivery
    • 1x Kiox 400C
    • 1x screw EB1320009N
    • Operating and installation instructions

    Specification

    System The smart system
    Model year MY2026

BOSCH ORIGINAL PART
