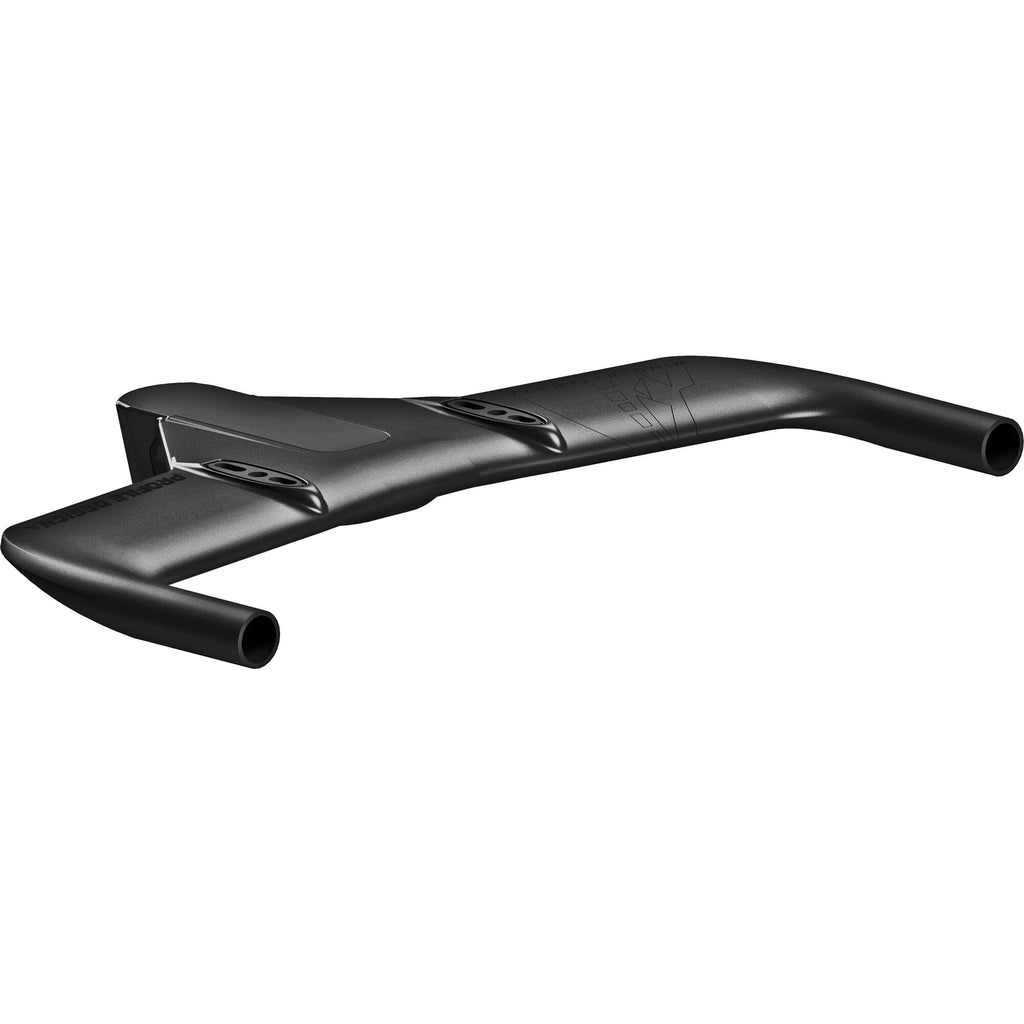

The Wing Ultimate S is our new halo-level bar - a return to the integrated stem concept that we pioneered with the Carbon-X over 20 years ago. The Wing Ultimate S offers full carbon construction and a variety of cable routing options.
The Wing Ultimate S has been designed to maximise aerodynamics within the updated UCI rules, offering a measurable improvement compared to a 3:1 design. It also drops a significant amount of weight compared to the Aeria Ultimate.
The Wing Ultimate S is sold as a basebar only, allowing the rider to choose their optimum configuration from our extensive range of options.
Specifications
- Effective stem length: 89.6mm
- Effective bar reach: 142.4mm
- Basebar width: 420mm
- Stack of bracket mount: 44.3mm
- Stack of grips: 0.5mm
- Weight: 390g (bare basebar)
Compatibility
Armrests
- Ergo+
- Race+
- Ergo
- ASC Pro
Brackets
- A2 Standard
- A2 Race
- ASC Pro
Extension
- ASC range
- SLC range
- ASC Pro
Key Features
- Full carbon integrated bar and stem
- Compatible with the A3 Riser System
- Compatible with top tube or headset cable routing
